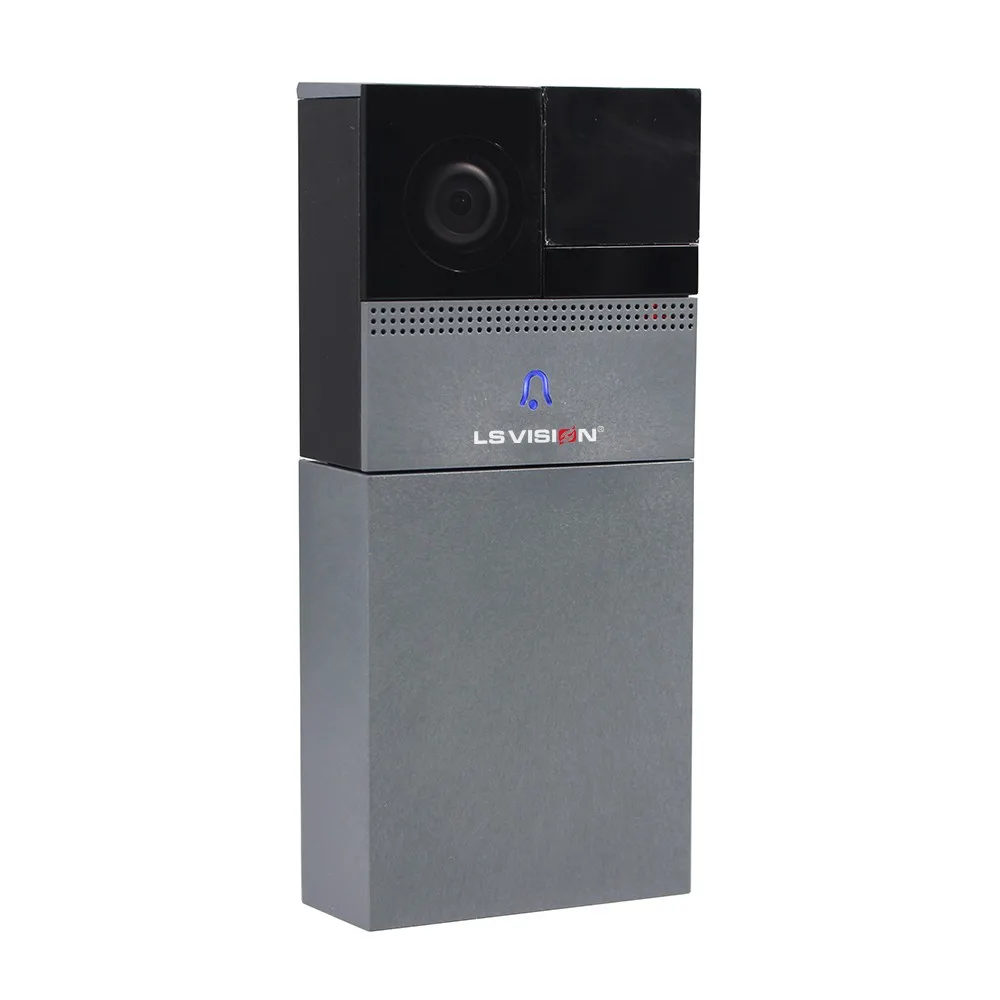

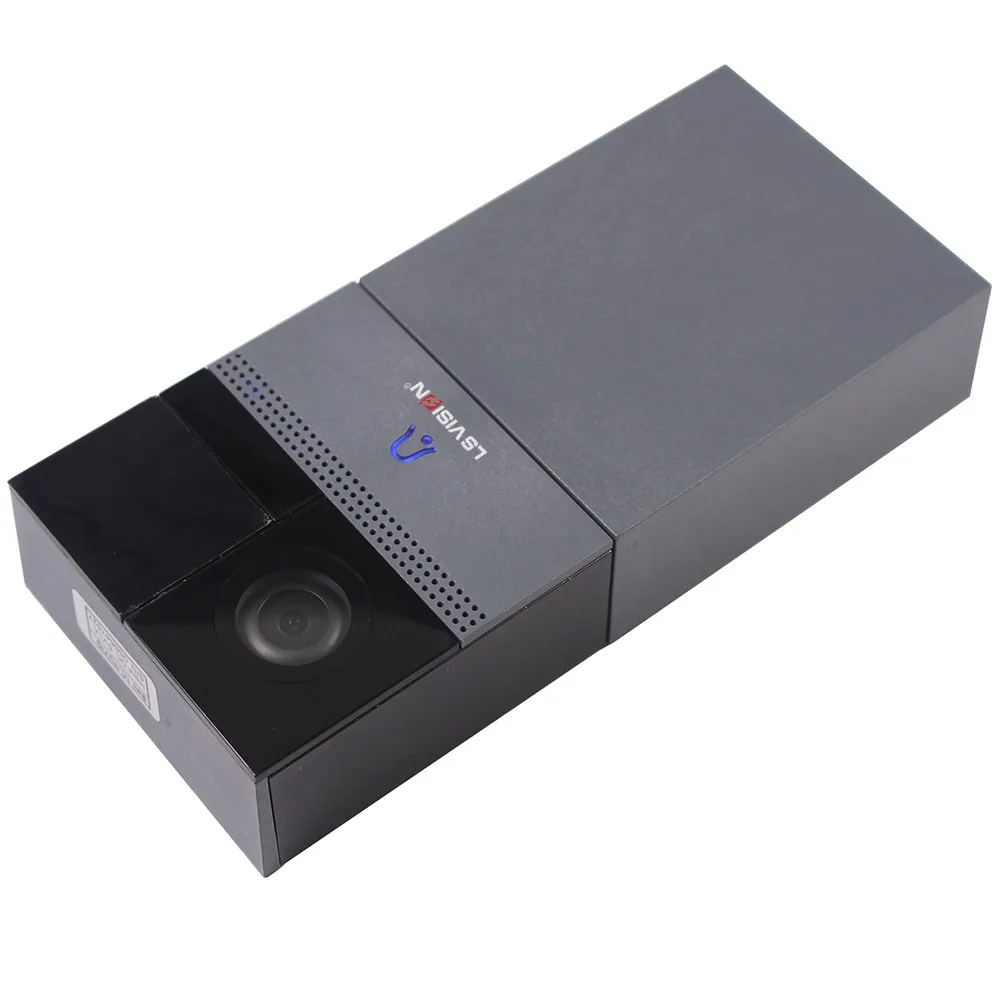

LS VISION Smart Life APP Remote Monitoring Wide Angle 720P PIR Alarm Wireless Wifi Battery Audio Intercom Video Door Bell for Guangdong, China
Shenzhen LSVISION Technology Co., Ltd. is excited that we will make our LS VISION Smart Life APP Remote Monitoring Wide Angle 720P PIR Alarm Wireless Wifi Battery Audio Intercom Video Door Bell widely known to the market. The product is the result of our hardworking staff and strong technical capabilities. LS VISION Smart Life APP Remote Monitoring Wide Angle 720P PIR Alarm Wireless Wifi Battery Audio Intercom Video Door Bell is the result of high-end technologies.With the continual of enlarging of its application range in Doorbells, its demands are increasing rapidly every year. Shenzhen LSVISION Technology Co., Ltd. will always adhere to the business philosophy of honesty, innovation, integrity to run our business. We believe that with the combined efforts of all our employees, we have enough skills and capabilities to overcome all obstacles and difficulties to make some achievements in the future.
Place of Origin: | Guangdong, China | Brand Name: | LS VISION |
Model Number: | LS-WD601 | Power Source: | Battery |
Feature: | Modular design, Battery part removeable |











Key Features:
1, 720P WiFi Doorbell,150° wide angle and 1.7mm Lens
2, Real time video and intercom when bell rings and remote monitor by mobile App(Smart Life)

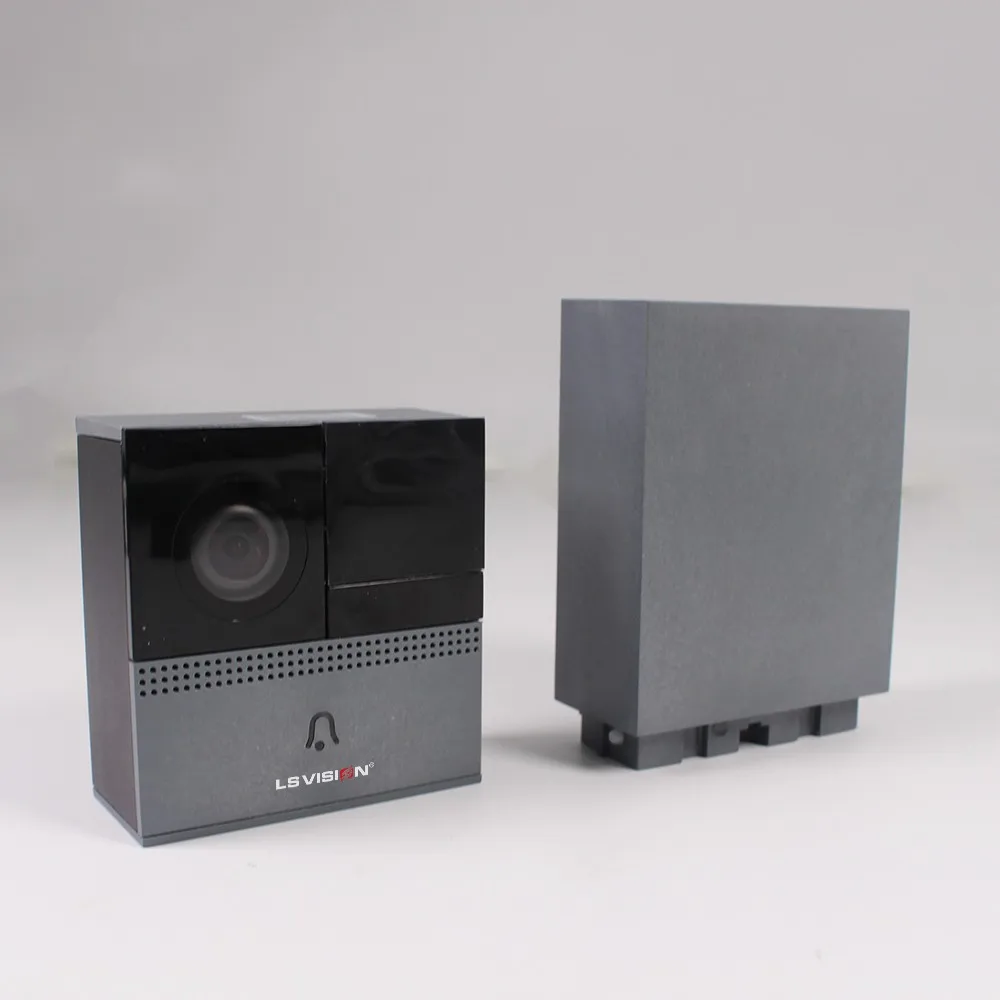

3, Modular design, Battery part removeable

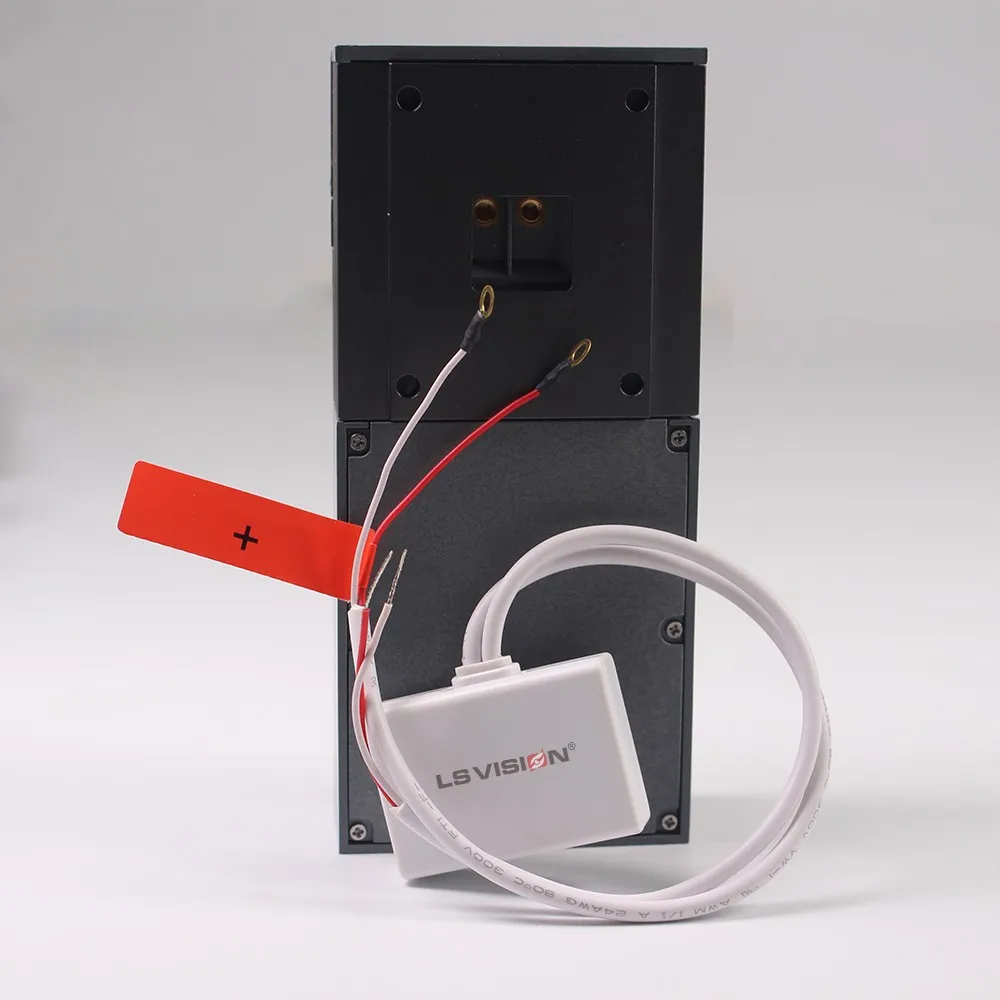

4, Low power consumption, 2*18650 batteries(6-8 months' using) or hardwire (AC 8V-24V) power supply
5, Support Battery Lock prevent it loss
6, PIR and motion detection alarm and record
7, Night Vision
8, Support indoor bell(socket type)
9, Support TF Card Max to 128GB
10, IEEE802.11 b/g/n 2.4G WiFi
11, Color: White/ Grey

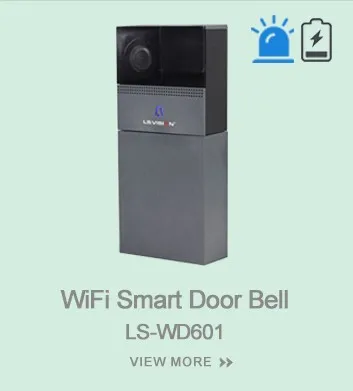

Model NO. | LS-WD601 |
Modular design | Battery part removeable |
Chip | Hisilicon Hi3518E |
Sensor | 1/4 CMOS OV9732 |
Lens | 1.7mm |
Min illuminance | Color 0.01Lux @F1.2 and Black and White 0.001Lux @F1.2 |
Shutter | 1/25~1/100,000 per second |
Wide Angle | 150 degree |
Video resolution | HD (1280*720P) |
Video frame rate | 1~25 per second |
Video compression | H.264 |
Bite rate | 32Kbps~2Mbps |
Night Vision | Support |
Motion detection | Support PIR and motion detection alarm and record |
Motion detection Sensitivity | Adjustable |
Audio input and output | built-in one Microphone and one speaker |
Intercom | 2-way audio with noise-cancellation |
App | Smart Life |
Real time video | Real time video when bell rings and remote monitor by App |
Drawing speed | Less 4 seconds |
Flip image | Support |
Low power consumption | Automatically sleeping |
Notification | Push notification within 2 seconds |
WDR | Support |
Power | Battery or Hardwire Power Supply (AC 8V~24V) |

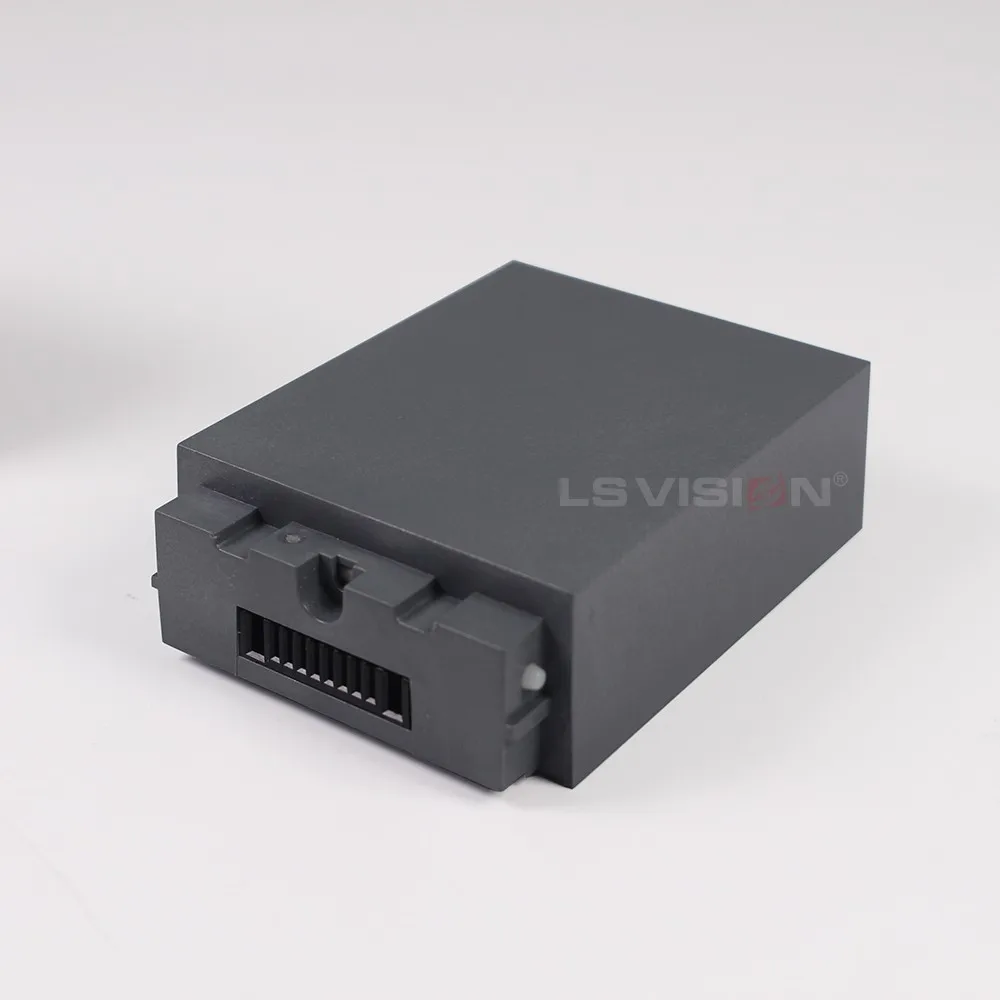

Battery | 2*18650 batteries(6-8 months' using) |
Battery Lock | Support |
Low Battery alert | Support |
Standy time | 10 months |
Standby consumption | 200µA(Super Low consumption) ~800µA |
Work consumption | 220mA |
WiFi | IEEE 802.11 b/g/n(2.4GHz) |
Protocols | TCP/IP,HTTP,DHCP,DNS,RTSP |
TF Card | Max to 128GB (Class10) |
Indoor bell | Support (socket type) |
Waterproof | IP65 |
Operating temperature | -20℃~50℃ |
Humidity | 90% non-condensing |
Colors | White/ Grey |
Dimension | 58x130x26mm(With battery box), 58x60x26mm(Without battery box) |
Weight | 650g |


Why LS VISION will be your first choice in the market?
LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – "Only for Quality Life" and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.

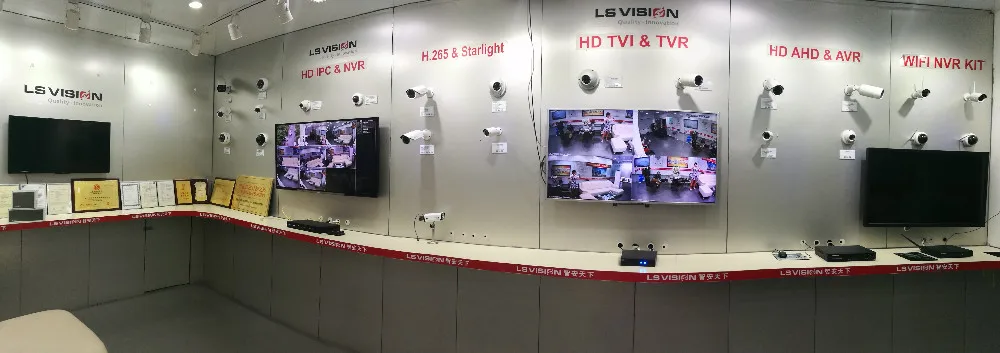

LS VISION main product include High Quality IP Camera, HD Network Camera, PTZ Bullet Camera,HD NVR, and H.265 WIFI NVR Kits etc.

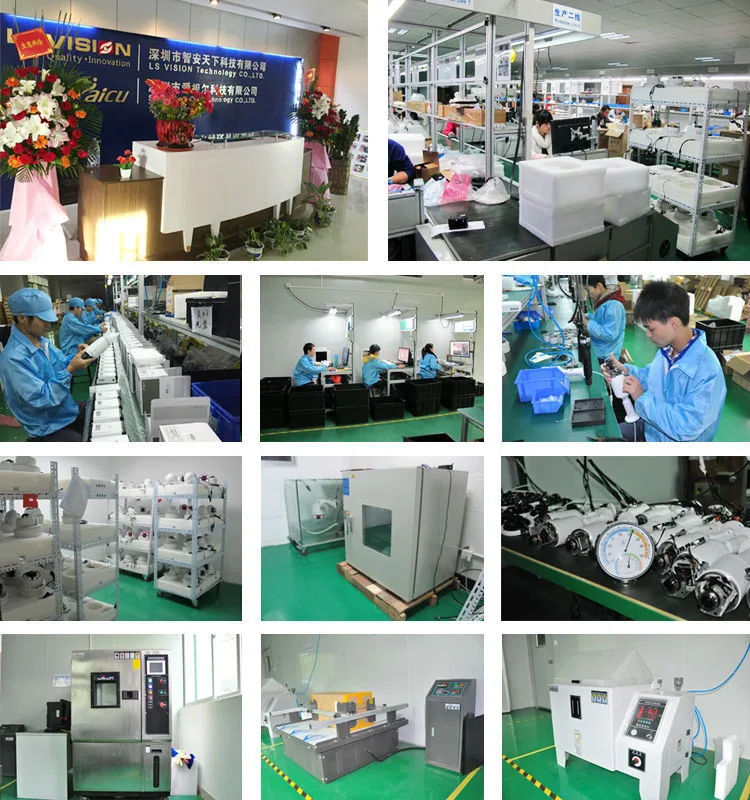

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision's products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.
Now our team is keeping on research new products, Such as 4K H.265 Face Recognition IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera.
OEM and ODM service will be provided beyond your imagine.
LS Vision is definitely a worthwhile cooperation for you.
